Roof Truss Calculator: Count, Pitch & Cost

Roof Truss Calculator

Accurate geometric estimations for roof truss framing

Total outside width of the roof base
Choose how you want to specify roof steepness
Rise in inches for every 12 inches of run
Total length of the roof structure
Center-to-center distance between trusses
Horizontal overhang extension on each side
Dynamic Roof Geometry Visualizer
Calculation Results
Roof Pitch
–
Roof Rise
–
Half Span
–
Top Chord / Rafter Length
–
Total Top Chord (w/ Overhang)
–
Trusses Required
–
Est. Roof Surface Area
–
Pitch Angle
–
Disclaimer: This tool provides geometric estimation and framing assistance only. It does not calculate structural load capacities, wind resistance, or timber grading compliance. Final structural designs must be verified and approved by a licensed structural engineer or qualified building contractor.

There is no building without a solid top structure, and determining the right components requires precise measurements which is where our rafter length calculator becomes essential. Using this tool, you can quickly find the exact dimensions for your roof trusses and determine the total roof truss count needed for your construction project. Beyond measuring rafter length, this all-in-one roof truss calculator allows you to estimate your total material expenses and overall roof truss cost, including labor and installation fees.

How to use the roof truss calculator

How to use the roof truss calculator

Our tool serves a dual purpose: it functions as a rafter length calculator to estimate timber dimensions, or as a roof truss count calculator to evaluate overall material quantity, installation fees, and total roof truss cost.

To begin, select your primary calculation mode from the top menu: “rafter length” or “truss count”.

Calculating Rafter Dimensions

When working in rafter mode, choose your preferred primary variable:

  • Rise Method: Select the roof rise (height). Enter the rise and the roof run (horizontal length); the rafter length calculator will immediately display the total rafter length at the bottom. This calculation works bidirectionally inputting any two values calculates the third.
  • Pitch Method: Select the roof pitch (slope). Enter both the run and the pitch (accepted in angle, percentage, or ratio formats). The tool automatically computes the rafter length alongside pitch conversions.

Calculating Quantity and Expenses

Switching to truss count mode allows you to plan structural requirements and budgeting:

  • Quantity Estimation: Input your overall roof length and the required on-center spacing (distance between centers of adjacent structural elements). The roof truss calculator will project the precise number of roof trusses needed.
  • Cost Analysis: Toggle the installation fee option depending on your project setup. If unchecked, simply enter the price per unit to calculate the base roof truss cost. If checked, provide the contractor’s hourly rate and the estimated timeframe to determine overall project expenditure.

Note: Unsure about terms like run, rise, or pitch? Refer to the visual diagram at the top of the page for clear explanations.

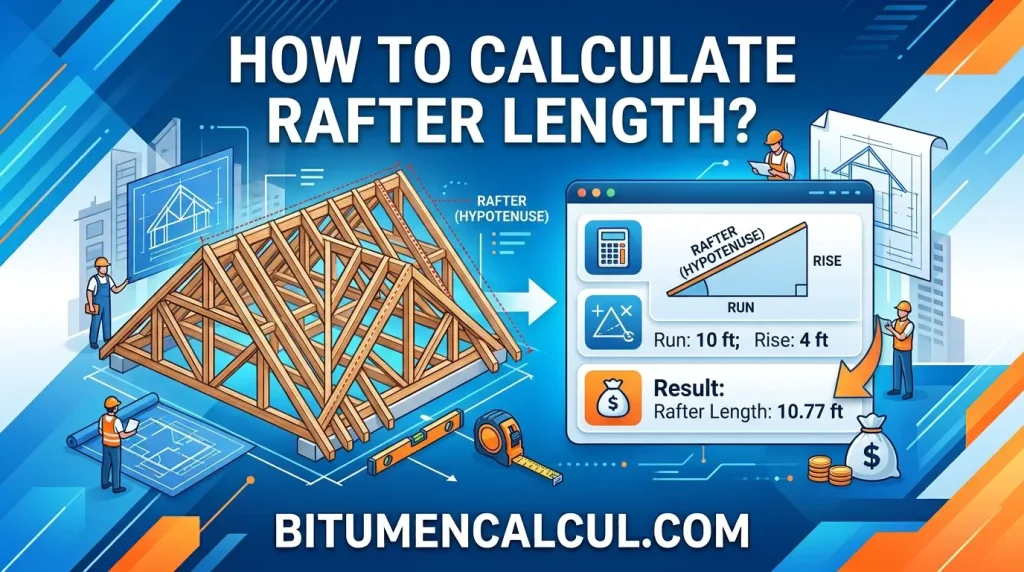

How to calculate rafter length?

How to calculate rafter length?

Determining your framing dimensions depends entirely on the initial measurements you have available typically either the slope or vertical height of the roof structure. Interestingly, finding these measurements relies on basic geometry: the Pythagorean theorem for right-angled triangles.

Calculating Using Roof Rise

When you know the vertical height of your structure, apply the standard geometric formula:

$$\text{rise}^2 + \text{run}^2 = \mathbf{rafter\ length}^2$$

To find the final measurement directly, isolate the target variable:

$$\mathbf{rafter\ length} = \sqrt{\text{rise}^2 + \text{run}^2}$$

Instead of working through equations manually, you can also plug these values directly into our rafter length calculator for instant results.

Calculating Using Roof Pitch

If you are starting with slope measurements instead, determine the rise first using the roof pitch percentage formula:

$$\frac{\text{rise}}{\text{run}} = \mathbf{roof\ pitch} \implies \text{rise} = \text{run} \times \mathbf{roof\ pitch}$$

Combining both steps creates a single direct formula to calculate rafter length using the roof pitch:

$$\mathbf{rafter\ length} = \text{run} \times \sqrt{\mathbf{roof\ pitch}^2 + 1}$$

Note: If you need visual clarification on terms like run or rise, consult the structural diagram provided below.

How to calculate truss count and roof truss cost?

Determining structural dimensions like rafter length is only part of project planning. You can also use our roof truss calculator to determine the total material requirements and evaluate overall project expenses, including labor.

Calculating Total Framing Units

To find the required truss count, apply the standard layout formula (assuming standard 24-inch spacing and roof length measured in feet):

$$\text{truss count} = \left(\frac{\text{roof length} \times 12}{24}\right) + 1$$

Note: Always round your final truss count up to the next whole integer (for instance, a result of 14.2 requires purchasing 15 units).

Calculating Total Expenses

To project your overall roof truss cost, calculate material pricing alone or combine it with professional installation:

  • Material Cost Only:

$$\text{total cost} = \text{truss count} \times \text{single truss price}$$

  • Combined Material and Installation Cost:

$$\text{total cost} = (\text{truss count} \times \text{single truss price}) + (\text{hourly/daily labor rate} \times \text{work duration})$$

Refer to the visual reference diagrams below if you need clarification on terms like on-center spacing.

What is on-center spacing?

When estimating building framing with a roof truss calculator, one essential variable you will encounter is on-center spacing. While it plays a direct role in calculating rafter length and overall roof truss cost, this architectural measurement is widely used across various structural framing applications.

What Is On-Center Spacing?

Often abbreviated as OC or o.c. in structural blueprints, on-center spacing refers to the distance measured from the exact middle of one framing member to the center of the next adjacent member.

For instance, if a blueprint specifies 20 inches OC for 6-inch-wide timber posts, the actual open gap between those posts is 14 inches ($20 – [3 + 3]$).

Why On-Center Spacing Matters

  • Sheet Material Compatibility: Standard construction materials like plywood or drywall typically come in 48-inch widths (4′ × 8′). Standard layout spacings of 16 or 24 inches OC ensure that board edges land directly over the midpoint of a vertical stud. This provides a solid ¾-inch wood backing for secure nailing and easier panel attachment.
  • Handling Material Thickness Variations: Milled lumber can vary slightly in exact dimensions. Measuring from center-to-center instead of edge-to-edge maintains precise spacing alignment across the entire structure, regardless of minor variations in wood thickness.

What kind of roof trusses are available?

If you are currently determining structural dimensions with our rafter length calculator, you are likely planning a new residential building project. Choosing the right structural framework is a critical decision, as several variations of roof trusses exist to suit different architectural needs, budgets, and building layouts.

  • Fink Roof Truss: Widely considered the most economical choice. Its primary benefits are lightweight construction and rapid assembly on site.
  • Traditional Cut Roof: Ideal for custom framing and complex geometric roof structures.
  • Attic Truss: Features an open center frame designed to provide usable living or storage room, though it carries higher material expenses.
  • Panelized Roofing: Consists of large, pre-insulated structural panels laid directly across supporting beams. While material costs are higher than standard roof trusses, the simplified layout significantly reduces labor and installation time.

Build Your Own Trusses: What This Calculator Tells You

Although most home construction relies on factory-manufactured frames, many DIY builders, agricultural projects, and outbuilding framing jobs utilize a build your own trusses calculator approach to construct framing members on-site before hoisting them into position. If you plan to build your own trusses, the lumber cut list generated by this tool provides an initial material breakdown. However, you must still consult an engineer or local building code tables such as IRC span charts for site-built trusses to verify structural member dimensions for your specific load requirements.

Important: Local permitting authorities typically demand engineered manufacturer drawings or a licensed engineer’s stamp for site-built trusses on any building beyond basic sheds or non-habitable outbuildings. Always consult your local building department before fabricating framing units independently for residential structures.

The Math Behind the Calculator

  • Pitch Angle: Represents the exact slope inclination between the framing member and the flat ceiling joist plane, derived directly from your rise-and-run ratio. You can easily convert this ratio into a pitch angle in degrees using basic trigonometry.
  • Rise: The net vertical distance measured from the top wall plate straight up to the peak of the ridge.
  • Rafter Length: Calculated using the Pythagorean theorem to determine the accurate sloped distance of your timber framing. Finding the exact rafter length ensures accurate material purchasing.
  • Roof Area: Measured by taking the flat building footprint and dividing it by the cosine of the slope angle to adjust for the pitch incline. Calculating the true roof area is essential for estimating sheathing and shingle coverage.
  • Truss Count: The total quantity of structural framing units needed across the roof span based on your selected on-center interval. Determining the final truss count prevents framing shortages during assembly.
  • Total Load: Represents the combined structural dead weight and environmental live loads distributed across the entire surface.

FAQs

Standard engineered units do not require interior support partitions. They are specifically designed to clear-span directly from one exterior wall to the opposite side, transferring the entire structural weight safely down to the outer foundation.

How Roof Trusses Work

  • Outer Wall Support: Standard roof trusses transfer structural dead and live loads exclusively to the exterior walls.
  • Interior Partition Flexibility: Interior walls beneath standard units generally serve as non-structural room dividers rather than load-bearing members.
  • Deflection Clearance: Framing requires a small clearance gap above interior partitions to allow slight flexing under temporary loads without damaging interior finishes.

Exceptions to Consider

  • Gable-End Framing: End wall assemblies or gable units positioned above specific partitions may demand direct vertical studs or structural headers beneath them.
  • Specialized Designs: Custom room-in-attic configurations or complex multi-bearing profiles often rely on specified interior support columns or beams.
  • Structural Verification: Never remove an interior wall without reviewing the original structural drawings or consulting a licensed engineer.

Choosing between 2×6 or 2×8 dimensional lumber depends on your clear horizontal span, specified roofing materials, and local environmental loads. Use 2×6 framing for shorter spans under 11 to 12 feet carrying lighter loads. Upgrade to 2×8 or larger for spans exceeding 12 feet, heavy shingle installations, or areas subject to high snow loads.

When to Select 2×6 Rafters

  • Short Spans: Suitable when the clear horizontal run stays under 11–12 feet (ideal for small sheds, porches, or lean-tos).
  • Lightweight Sheathing: Works well when installing corrugated metal panels rather than heavy tile or architectural asphalt shingles.
  • Zero Snow Regions: Best suited for warm climates without environmental snow accumulation.

When to Select 2×8 Rafters

  • Medium Spans: Necessary for horizontal runs between 12 and 15 feet depending on lumber species and spacing intervals.
  • Enhanced Rigidity: Provides greater deflection resistance, more surface area for secure connections, and deeper cavities for thick insulation.
  • Heavier Loads: Recommended for traditional asphalt shingle roofs and moderate environmental snow loads.

Common framing oversights typically involve miscalculating total environmental loads, conflicting architectural or foundation blueprints, and neglecting proper bracing layouts. These errors can lead to structural sagging, connection failures, or building code non-compliance.

Load and Specification Errors

  • Omitting Environmental Loads: Neglecting localized wind uplift, heavy snow accumulation, or dead loads during initial calculations.
  • Undersized Bearing Plates: Designing wall contact surfaces too narrow to distribute structural forces down through the walls.
  • Incorrect Exposure Ratings: Applying standard interior lumber treatments to high-humidity environments or exposed coastal wind zones.

Plan and Layout Discrepancies

  • Dimension Conflicts: Inconsistencies between foundation dimensions and overhead framing layouts.
  • Mismatched Roof Profiles: Overhead structural plans calling out hip designs while elevation drawings depict gable ends.
  • Unplanned Elevation Changes: Overlooking stepped wall heights or varying plate levels across building blueprints.

Bracing and Fastener Neglect

  • Insufficient Lateral Support: Failing to specify permanent continuous lateral restraint (CLR) and diagonal bracing.
  • Inadequate Connectors: Specifying undersized metal gusset plates, hurricane ties, or structural joist hangers.
  • Improper Heel Joints: Miscalculating wedge connections on large or raised heel framing configurations.

For a 30×40 building spanning the 30-foot width, you will need 11 units if placed at 4-foot intervals (standard for pole barns), or 21 units if placed at 24-inch intervals (standard residential). These calculations assume the 40-foot dimension represents the roof run and include both end wall units.

Calculation Formulas

  • 4-Foot Spacing (48 inches): $(40\text{ ft} \div 4\text{ ft}) + 1 = 11\text{ units}$
  • 2-Foot Spacing (24 inches): $(40\text{ ft} \div 2\text{ ft}) + 1 = 21\text{ units}$
  • 16-Inch Spacing (16 inches): $(40\text{ ft} \div 1.333\text{ ft}) + 1 = 31\text{ units}$

Primary Spacing Standards

  • 4 Feet On-Center: Primarily used in post-frame and pole barn construction to match post layouts.
  • 24 Inches On-Center: The standard layout interval for traditional stick-built residential structures.
  • 16 Inches On-Center: Required for heavy roofing materials, severe snow conditions, or specific local structural codes.

The term “truss formula” usually refers to either the Structural Determinacy Equation used by engineers to verify framing stability, or the truss count formula used by builders to determine material requirements.

1. Structural Determinacy Formula (Engineering)

To verify whether a 2D planar frame is statically determinate and stable, engineers evaluate the relationship between members, supports, and joints:

$$M + R = 2J \quad \text{(Statically determinate and stable)}$$

$$M + R < 2J \quad \text{(Unstable / prone to collapse)}$$

$$M + R > 2J \quad \text{(Statically indeterminate / redundant members)}$$

  • M: Number of individual structural members.
  • R: Number of support reaction forces (typically 3 for a basic pinned/roller setup).
  • J: Number of connected joints or nodes.

2. Layout Quantity Formula (Construction)

To estimate the total truss count required for a building based on overall length and layout spacing:

$$\mathbf{truss\ count} = \left(\frac{\text{Building Length}}{\text{On-Center Spacing}}\right) + 1$$

Prefabricated roof trusses are most commonly placed 24 inches (2 feet) on-center for standard residential and commercial construction. However, spacing intervals can range from 16 inches for heavy loads up to 4 to 12 feet for post-frame agricultural structures.

Standard Spacing by Building Type

  • Residential Construction: 24-inch on-center spacing is standard, though 16-inch intervals are used for heavy snow regions or complex hip roof layouts.
  • Post-Frame / Pole Barns: Typically placed 4 feet to 12 feet apart depending on purlin orientation, overall span, and environmental wind loads.
  • Commercial Applications: Custom spacing configurations engineered to satisfy specific commercial building codes and heavy load criteria.

Key Factors Influencing Spacing

  • Climate Requirements: High snow loads and extreme wind zones demand closer spacing intervals (such as 16 inches) or reinforced custom framing.
  • Roof Sheathing & Purlins: Lighter metal roofing attached to purlins often permits wider framing gaps than traditional plywood decking.
  • Building Codes: Local structural regulations always take precedence over general spacing guidelines.

How much weight will a 2×4 rafter hold?

A standard 2×4 roof rafter is typically engineered to support a total distributed load of 20 to 30 pounds per square foot (PSF), depending on clear span length, wood grade, and spacing. Over an 8-foot span, an individual 2×4 positioned on edge can safely support approximately 330 pounds of concentrated center force before reaching critical deflection limits.

Factors Affecting Load Capacity

  • Spacing Intervals: Set at 12 inches on-center, a 2×4 supports longer spans, but its total load capacity per linear foot drops significantly at standard 16-inch or 24-inch spacing.
  • Dead Load vs. Live Load: Calculations must balance dead load (roofing shingles, sheathing, insulation roughly 10–15 PSF) with live load (temporary wind or snow forces typically 20 PSF).
  • Point Loads vs. Uniform Loads: Rafters are calculated for evenly distributed weight; suspending heavy point loads (like equipment or storage platforms) from a single 2×4 member risks severe sagging or fastener failure.

To determine the overall truss count for a straightforward gable roof, divide the total building length by your chosen on-center spacing interval (such as 24 inches or 2 feet) and add 1 to include the far end framing unit.

Example: On a 40-foot building using standard 2-foot spacing: $(40 \div 2) + 1 = 21\text{ main units}$.

Calculating Quantity Requirements

  1. Measure Building Length: Determine the overall horizontal run along the eave line.
  2. Select On-Center Spacing: Standard home construction utilizes 24-inch (2-foot) or 16-inch intervals.
  3. Apply the Formula: $\mathbf{truss\ count} = (\text{Building Length} \div \text{Spacing}) + 1$
  4. Account for Gable Ends: Order or fabricate dedicated gable-end units if required by your framing plan.

Calculating Physical Framing Geometry

Calculating individual member dimensions or top chord lengths requires basic right-triangle geometry:

  • Span: Total wall-to-wall exterior building width.
  • Run: Half of your overall building span.
  • Rise: Total vertical height gained, derived from the pitch ratio (e.g., a 4/12 pitch climbs 4 inches per 12 inches of run).
  • Top Chord Length: Calculated as the hypotenuse ($\text{Run}^2 + \text{Rise}^2 = \text{Top Chord}^2$) plus eave overhang.

Digital tools like a roof truss calculator can automate these dimension and count estimates, but final project orders should always be reviewed by a certified engineer.

A standard 2×4 roof truss can typically clear-span between 26 and 36 feet without interior load-bearing support, depending heavily on internal webbing configurations, roof slope, and local environmental loads. Triangulated web designs transfer loads directly outward to the exterior walls.

Span Limits by Configuration

  • Fink (W-Pattern) Truss: Clear-spans 26 to 36 feet. This is the most common residential configuration; steeper slopes (such as 6/12) achieve maximum spans, while shallow pitches reduce span limits.
  • Queen Post Truss: Clear-spans 18 to 24 feet, utilizing two vertical interior posts alongside the main outer frame.
  • King Post Truss: Clear-spans 10 to 16 feet maximum, constrained by a single vertical center post.

Key Factors Impacting Span Limits

  • Roof Slope: Steeper pitches (4/12 or higher) handle structural loads more effectively, whereas low pitches (such as 3/12) reduce maximum unsupported spans by roughly 20%.
  • Environmental Loads: High snow zones (e.g., 40 PSF snow load) significantly decrease maximum safe clear spans compared to mild climate zones (20 PSF).
  • Framing Spacing: Standard 24-inch on-center spacing is assumed for most residential span charts.

Both 16-inch and 24-inch on-center spacing configurations are standard across construction. However, 24-inch spacing is the most widely used and cost-effective choice for modern residential projects because it lowers total material requirements.

Comparing 16-Inch vs. 24-Inch Spacing

  • 24-Inch On-Center Spacing:
    • Cost: Reduces the required truss count, lowering material and labor expenses.
    • Sheathing: Generally requires thicker roof decking (such as 5/8-inch plywood or OSB) to prevent panel deflection between framing members.
    • Best Use: Standard residential homes under typical environmental loads.
  • 16-Inch On-Center Spacing:
    • Strength: Provides superior load capacity for high wind zones or heavy snow accumulation.
    • Sheathing: Accommodates thinner roof decking like 1/2-inch OSB.
    • Best Use: Heavy snow regions, complex hip roof designs, or alignment with 16-inch exterior wall stud layouts.

Critical Considerations

  • Engineering Specifications: Prefabricated frames are computer-designed for specific spacing and load configurations; always adhere to the manufacturer’s engineering layout.
  • Building Codes: Local structural regulations set the minimum required live and dead load capacities for your building site.

Conclusion

Whether you are estimating precise lumber dimensions or projecting total material and installation expenses, mastering your framing geometry is the key to a safe, cost-effective build. By accurately balancing pitch, on-center spacing, and load requirements with our roof truss calculator, you eliminate costly material guesswork, prevent structural sagging, and streamline your construction timeline from initial layout to final inspection.
