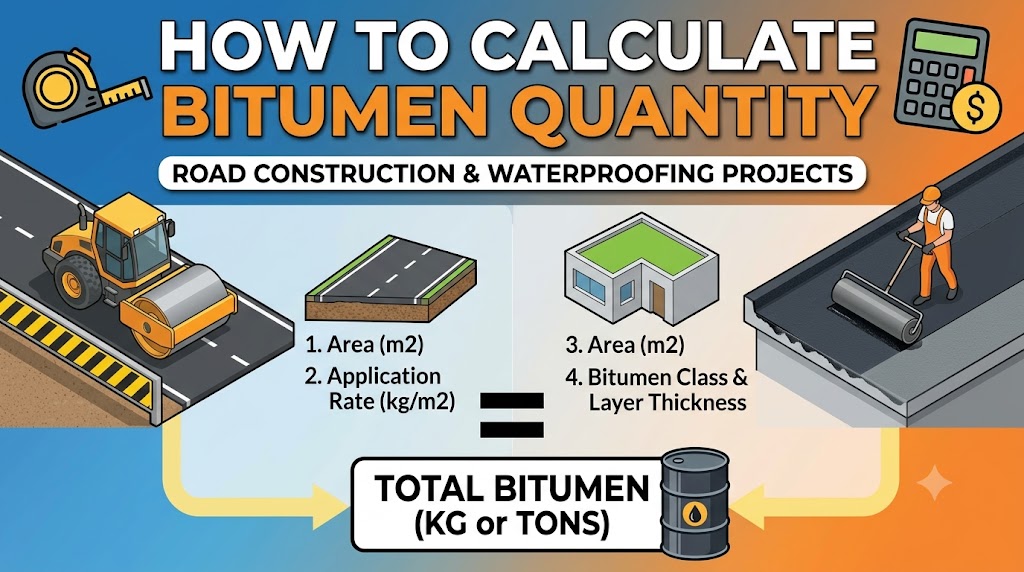

How to Calculate Bitumen Quantity: Complete Guide for Road Construction and Waterproofing Projects
Accurate bitumen quantity calculation is essential for road construction, asphalt paving, waterproofing, roofing, and infrastructure projects. Underestimating bitumen requirements can lead to project delays and quality issues, while overestimating increases costs and material wastage.
This guide explains how to calculate bitumen quantity using industry-standard formulas, practical examples, and key factors that influence bitumen consumption.
What Is Bitumen?
Bitumen is a petroleum-based binding material widely used in road construction and waterproofing applications. It acts as an adhesive that binds aggregates together to form durable asphalt pavements and protective waterproof layers.
Bitumen quantity is typically measured in:
- Kilograms (kg)
- Metric Tons (MT)
- Liters (for emulsions and liquid applications)
How Do You Calculate Bitumen Quantity?
The basic formula for calculating bitumen quantity is:
Bitumen Quantity = Area × Application Rate
Where:
- Area = Length × Width (m²)
- Application Rate = Bitumen required per square meter (kg/m²)
For road construction:
Bitumen Quantity (kg) = Surface Area (m²) × Bitumen Spray Rate (kg/m²)
Formula for Calculating Bitumen Quantity
Step 1: Calculate Surface Area
Surface Area = Length × Width
Example:
- Length = 500 m
- Width = 7 m
Surface Area = 500 × 7
= 3,500 m²
Step 2: Determine the Application Rate
Typical bitumen application rates are:
| Application Type | Rate (kg/m²) |
|---|---|
| Prime Coat | 0.7 – 1.2 |
| Tack Coat | 0.2 – 0.5 |
| Surface Dressing | 1.0 – 2.0 |
| Waterproofing | 1.5 – 3.0 |
| Asphalt Mix | 4% – 7% by weight of mix |
Step 3: Calculate Total Bitumen Quantity
Formula:
Bitumen Quantity = Area × Application Rate
Example:
- Area = 3,500 m²
- Tack Coat Rate = 0.3 kg/m²
Bitumen Quantity = 3,500 × 0.3
= 1,050 kg
= 1.05 Metric Tons
Bitumen Quantity Calculation for Asphalt Roads
When producing asphalt concrete, bitumen content is usually expressed as a percentage of the total asphalt mix.
Formula
Bitumen Quantity = Total Asphalt Mix Weight × Bitumen Percentage
Example
Given:
- Asphalt Mix = 200 MT
- Bitumen Content = 5.5%
Calculation:
Bitumen Quantity = 200 × 5.5%
= 200 × 0.055
= 11 MT
Therefore, 11 metric tons of bitumen are required.
Bitumen Quantity Calculation for Waterproofing
Formula
Bitumen Required = Area × Coverage Rate
Example
Roof Area = 1,000 m²
Coverage Rate = 2 kg/m²
Bitumen Quantity = 1,000 × 2
= 2,000 kg
= 2 MT
How to Calculate Bitumen Quantity Per Cubic Meter of Asphalt
For asphalt pavement layers:
Step 1: Calculate Volume
Volume = Length × Width × Thickness
Example:
- Length = 100 m
- Width = 7 m
- Thickness = 0.05 m
Volume = 100 × 7 × 0.05
= 35 m
Step 2: Calculate Asphalt Mix Weight
Average asphalt density:
2.35 tons/m³
Mix Weight = Volume × Density
= 35 × 2.35
= 82.25 MT
Step 3: Calculate Bitumen Content
Assuming bitumen content = 5%
Bitumen Quantity = 82.25 × 0.05
= 4.11 MT
Factors Affecting Bitumen Consumption
Several factors influence actual bitumen requirements:
Surface Condition
Rough and porous surfaces absorb more bitumen than smooth surfaces.
Aggregate Gradation
Coarse aggregates generally require different binder quantities than fine aggregates.
Weather Conditions
High temperatures can affect application rates and absorption.
Pavement Type
Flexible pavements, overlays, and surface treatments require varying bitumen contents.
Construction Method
Spray application, hot mix asphalt, and waterproofing systems have different consumption rates.
Bitumen Quantity Estimation Table
| Area (m²) | Rate (kg/m²) | Bitumen Required (kg) |
| 500 | 0.3 | 150 |
| 1,000 | 0.3 | 300 |
| 2,000 | 0.3 | 600 |
| 5,000 | 0.3 | 1,500 |
| 10,000 | 0.3 | 3,000 |
Frequently Asked Questions (FAQs)
Conclusion
Calculating bitumen quantity accurately is crucial for cost control, material planning, and project quality. The most commonly used formula is:
Bitumen Quantity = Area × Application Rate
For asphalt production, calculate bitumen as a percentage of the total asphalt mix weight. Always consider surface conditions, project specifications, and application methods when estimating bitumen requirements.
Using these formulas and examples will help contractors, engineers, and project managers determine precise bitumen quantities for road construction, paving, and waterproofing projects.
